Data Center Technologies: Cross Vcenter NSX with BGP

We have covered cross vcenter NSX with OSPF previously.
Here we cover cross vcenter NSX with BGP.
In this above topology:

There are two vcenters, one in the primary site and the other in DR site.
Primary NSX manager is deployed in primary site.
Secondary NSX manager is deployed in DR site.
Primary NSX manager is linked with vcenter in primary site.
Secondary NSX manager is linked with vcenter in DR site.
Universal controller cluster is deployed under vcenter 1
Cross vcenter NSX is configured using the primary and secondary NSX managers.
Universal transport zone is defined which will span the clusters across both sites. We are able to define universal logical switches using this single universal transport zone. Keep in mind that we are able to deploy only one universal transport zone. And all universal objects are only defined from primary NSX manager.
Two NSX edges are deployed in primary site and two NSX edges are deployed in DR site.
This is a active/passive model and we will ensure ingress/egress traffic from the primary site. This is a preferred setup since it gives deterministic traffic flow and keeps the traffic flow symmetrical, ingress/egress via a particular site.
To influence inbound traffic, we will leverage BGP AS Path Prepending in the physical network.

BGP Configuration:
As depicted in topology above:

iBGP is used within NSX domain. UDLR has four iBGP peerings with the NSX edges of both sites.
Single private AS 64512 is used within NSX domain
BGP AS 1 is used in the physical network upstream.
eBGP is used between NSX edges and the physical routers
iBGP is used between UDLR and NSX edges.
We will modify BGP weight on UDLR to influence outbound traffic.
NSX domain is like a stub network. Hence there is no hard requirement of full mesh iBGP within this NSX domain.
We are going to redistribute connected networks on UDLRs and the edges.
Default route will be sent by the physical routers towards NSX edges only through the eBGP peering. This configuration is covered in the BGP configurations below.

BGP Weight Modification on UDLR

Redistribute connected on UDLR

Redistribute connected on the NSX Edge

iBGP peerings on UDLR

Default route on UDLR

Now let's also map this topology with Cisco routers and lab this up.
I've added UDLR2 as well in this topology.

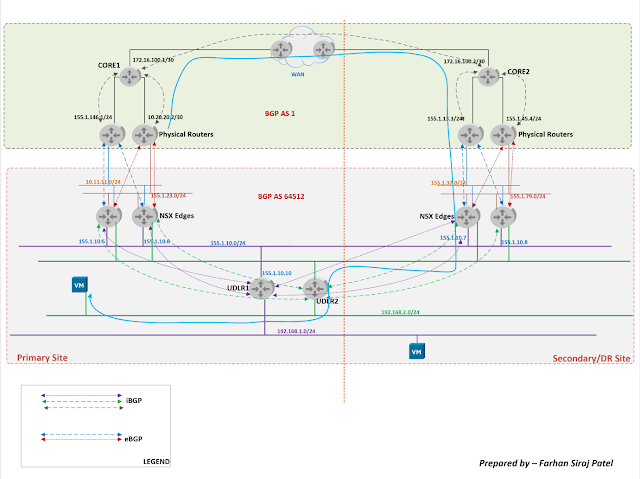

Ingress/egress for subnets behind UDLR2 will be via DR site. This is covered in the traffic flow section.
BGP setup for Cross Vcenter NSX using Cisco routers

This topology is for demo purpose only.
Core 1 and Core 2 routers in topology above are single point of failures. Also the route reflector configuration in this topology has single point of failures. Ideally redundant route reflectors should be deployed for exchange of route updates.
Appropriate measures should be taken while designing production networks to avoid such single point of failures.

This topology is essentially utilized to cover the BGP configs relevant to NSX.
The appropriate BGP peerings are depicted in the diagram above.
Core 1 is configured as route-reflector for physical routers in primary site.
Core 2 is configured as route-reflector for physical routers in DR site.
Core 1 and Core 2 have i BGP peering between them.
OSPF is utilized as IGP in BGP AS 1
Physical routers are sending a default route towards NSX edges only.
AS Path Prepending has been configured on physical routers of DR site for subnets behind UDLR1. This will ensure ingress/egress traffic for subnets behind UDLR1 is via primary site.
For subnets behind UDLR2, AS Path prepending will be done for these subnets in primary site. Ingress/egress traffic flow towards subnets behind UDLR2 will be via DR site.

Important notes about updates in a route-reflector setup:

Update received from a route-reflector client will be send across to other clients, non-clients and eBGP peers
Update received from a non client will be send across to other clients and eBGP peers only and such update will not be sent to other non clients. In the topology above, Core 2 is a non client for Core 1. Also Core 1 is a non client for Core 2.
Update received from a e BGP peer will be sent across to clients, non clients and other e BGP peers.

Router Configurations
